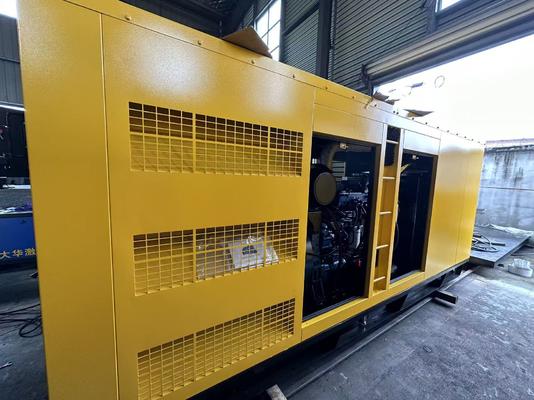

Yuchai Engine YC6MK420-D30 Silent type Diesel Generator Set 250kw Power Generators

Yuchai Engine YC6MK420-D30 Silent type Diesel Generator Set 250kw Power Generators

Marka Adı:	Yuchai engine
Model Numarası:	MB-250
Moq:	1 adet
fiyat:	Price:Negotiable
Ödeme Şartları:	Western Union, T/T, D/P, L/C
Tedarik Yeteneği:	200pcs/ay

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Sertifika:

ISO 9001:14000,CE,EACC

Marka Adı::

Yuchai Dizel Jeneratörü 250kW

Nominal Voltaj::

230V/400V

Motor Modeli::

YC6MK420-D30

Değerlendirilmiş Akım::

450A

Sıklık::

50Hz/60Hz

Alternatör Markası::

MBKL / WUXI Standford / Stamford / Leroy-Somer

Kontrol Paneli::

Deepsea / Harsen / SmartGen

Sertifika::

ISO 9001: 14000, CE

ATS::

İsteğe bağlı

Teslimat::

7-30 gün

Garanti Süresi::

1 yıl veya 1000 çalışma saati (hangisi önce gelirse)

Hız::

1500rpm/1800rpm

Ambalaj bilgileri:

Tüketici gereksinimleri olarak ahşap taşıyıcılara sarılmış plastik. LCL, 20ft ve 40ft mevcuttur.

Yetenek temini:

200pcs/ay

Ürün Tanımı

Yuchai YC6MK420-D30 diesel generator sets features:

(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset
Model	MB-250
Output Power	250KW/312.5KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	450A
Silent type Weight	3800kg (Net)
Silent type Dimensions	440011501940mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	Yuchai Diesel Engine
Model	YC6MK420-D30
Rotate Speed	1500RPM
Power	281/309KW
Fuel Consumption	≤ 203.1g/kw.h
Cylinder/Stroke	123*145 mm
Compression Ratio	16.8:1
Displacement	10.34L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	Changsha Mingbang Intelligent Technology Co.Ltd
Model	MBC4C
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

Yuchai Engine YC6MK420-D30 Silent type Diesel Generator Set 250kw Power Generators 0

Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Yuchai Engine YC6MK420-D30 Silent type Diesel Generator Set 250kw Power Generators 3

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

Yuchai Engine YC6MK420-D30 Silent type Diesel Generator Set 250kw Power Generators 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
