ISO 9001 Certified 400KVA Diesel Generator Set with 400V/230V and 50Hz/60Hz Frequency

ISO 9001 Certified 400KVA Diesel Generator Set with 400V/230V and 50Hz/60Hz Frequency

Model Numarası:	QSNT-G3
Moq:	1 adet
fiyat:	Price:Negotiable
Ödeme Şartları:	Western Union, T/T, D/P, L/C
Tedarik Yeteneği:	200pcs/ay

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

ISO 9001:14000,CE,EACC

Menşe Yeri::

Jiangsu Çin

Marka Adı::

Nominal Voltaj::

230V/400V

Motor Modeli::

QSNT-G3

Değerlendirilmiş Akım::

Sıklık::

50Hz/60Hz

Alternatör::

Stamford/ LEROY-SOMER/ MBKL

Kontrol Paneli::

Deepsea / Harsen / SmartGen

Sertifika::

ISO 9001: 14000, CE

ATS::

İsteğe bağlı

Teslimat::

7-30 gün

Garanti Süresi::

1 yıl

Jin seti boyutu::

3300*1150*1800mm

Jeneze Ağırlığı::

3000kg

Hız::

1500rpm/1800rpm

Model Numarası::

MB-320

Ambalaj bilgileri:

Tüketici gereksinimleri olarak ahşap taşıyıcılara sarılmış plastik. LCL, 20ft ve 40ft mevcuttur.

Yetenek temini:

200pcs/ay

Vurgulamak:

ISO 9001 Certified Diesel Generator Set

400V/230V Diesel Generator

50Hz/60Hz 400KVA Generator

Ürün Tanımı

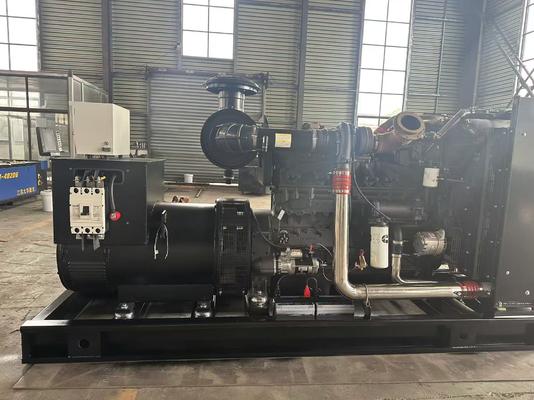

400KVA Diesel Generator Sets with Engine QSNT-G3

Premium Power Generation Solution

High quality brushless diesel generator sets featuring Engine with Smartgen Control System, available in both open and soundproof configurations.

Genset Specifications

Parameter	Specification
Model	MB-320
Output Power	320KW/400KVA
Power Factor	COSΦ=0.8 (lagging)
Maximum Output Current	576A
Weight	3000kg (Net)
Dimensions	330011501800mm
Voltage	400/230V
Frequency	50Hz

Diesel Engine Specifications

Parameter	Specification
Manufacturer	Diesel Engine
Model	QSNT-G3
Rotate Speed	1500RPM
Power	358KW/392KW
Fuel Consumption	≤ 205g/kw.h
Cylinder/Stroke	140*152 mm
Compression Ratio	16.7:1
Displacement	14L
Configuration	6-cylinder in-line, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter

Alternator Specifications

Parameter	Specification
Manufacturer	LEROY-SOMER Alternator
Model	TAL-A473-A
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Key Features

Easy operation, simple maintenance, and low operational costs
Compact structure with high-strength chassis and aesthetic design
Advanced damping system for smooth operation
Compliance with international electrical safety standards
8-hour continuous running base tank
High-performance maintenance-free batteries with safety isolation switch
50℃ radiator for optimal thermal management
Forklift bottom hole design for easy transportation
Industrial-grade muffler system
Noise reduction structure for low operational noise
Convenient power output and ATS interfaces
IP56 protection for control system
Customizable design options available

Mingbang Diesel Generator Set Factory

About MingBang Intelligent Technology

Established in 2005, Mingbang Intelligent Technology Co., LTD occupies 5042 square meters in Yangzhou city, Jiangsu Province - the central manufacturing hub of Southeast China near Shanghai.

We maintain close partnerships with leading power manufacturers including , Perkins, Deutz, Volvo, and Chinese brands SDEC, Yuchai, and Jichai. Our generator sets feature alternators from Stamford, Marathon, Leroy-Somer, and MBKL.

Our comprehensive diesel generator inventory ranges from 10KVA to 3000KVA, including silent, open, containerized, and mobile configurations. We serve diverse applications including:

Commercial buildings and offices
Residential developments
Industrial facilities
Healthcare institutions
Transportation infrastructure
Data centers and financial institutions
