112KW Diesel Generator Set with WEICHAI WP4.6ND138E310 Engine Fuel-Efficient & Environmentally Friendly

112KW Diesel Generator Set with WEICHAI WP4.6ND138E310 Engine Fuel-Efficient & Environmentally Friendly

Marka Adı:	WEICHAI engine
Model Numarası:	MB-112
Moq:	1 adet
fiyat:	Price:Negotiable
Ödeme Şartları:	Western Union, T/T, D/P, L/C
Tedarik Yeteneği:	200pcs/ay

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO 9001:14000,CE,EACC

Marka Adı::

WEICHAI dizel jeneratör 112KW/140KVA

Nominal Gerilim::

230V/400V

Motor Modeli::

WP4.6ND138E310

Nominal Akım::

201.6A

Sıklık::

50HZ/60HZ

Alternatör Markası::

MBKL / WUXI Standford / Stamford / Leroy-Somer

Kontrol Paneli::

Deepsea / Harsen / SmartGen

Sertifika::

ISO 9001: 14000, CE

ATS::

İsteğe bağlı

Teslimat::

7-30 gün

Garanti Süresi::

1 yıl veya 1000 çalışma saati (hangisi önce gelirse)

Hız::

1500rpm/1800rpm

Ambalaj bilgileri:

Tüketici gereksinimleri olarak ahşap taşıyıcılara sarılmış plastik. LCL, 20ft ve 40ft mevcuttur.

Yetenek temini:

200pcs/ay

Vurgulamak:

112KW diesel generator set

WEICHAI WP4.6ND138E310 engine generator

fuel-efficient diesel generator set

Ürün Tanımı

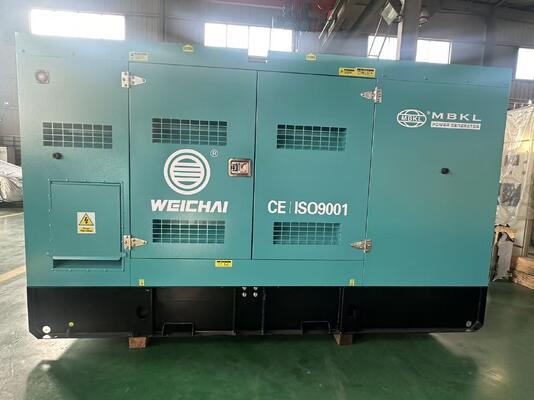

140KVA Generator Set with WEICHAI Engine WP4.6ND138E310 - Silent Type Diesel Generator

Product Features

Full control panel with power indicator light and oil light
Emergency shutdown for low oil pressure and high water temperature
Large fuel tank ensures continuous running
Low noise & vibration operation
Compact structure design
Reliable performance
Easy installation and maintenance

Painting Process

Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

Genset
Model	MB-112
Output Power	112KW/140KVA
Power Factor	COSΦ=0.8( lagging)
Maximum Output Current	201.6A
Weight	1300kg (Net)
Dimensions	25009201400mm
Voltage	400/230V
Frequency	50Hz
Diesel Engine
Manufacturer	Weichai Diesel Engine
Model	WP4.6ND138E310
Rotate Speed	1500RPM
Power	125/138KW
Fuel Consumption	≤ 200g/kw.h
Cylinder/Stroke	108*125 mm
Compression Ratio	16.9:1
Displacement	4.58L
Configuration	4-cylinder in-L-type, four-stroke, water-to-air cooling
Cooling Mode	Liquid Cooled
Speed Control System	Electronic
Starting Mode	24V DC
Filter System	Dry air filter, fuel filter, oil filter
Alternator
Manufacturer	LEROY-SOMER Alternator
Model	TAL-A44-H
Voltage Control Mode	AVR (automatic voltage regulation)
Voltage Regulation	±1%
Rated Voltage/Frequency/Power Factors	400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire
Steady State Frequency	Better than 5%
No-load Voltage Adjust Range	≥95% - 105%
Insulation Class/Protection Class	H / IP22
Excitation Type	Brushless

Product Images

About Our Factory

Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, with over 80 years of experience as a leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins' strength lies in its ability to tailor engines precisely to meet customers' requirements, trusted by more than 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and electrical power generation markets.

Our factory features CCEC, DCEC, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, Jichai and other world-renowned engines for generator sets. We specialize in synchronous 100% copper wire alternators with over 20 years of experience. The MB brand alternator has expanded worldwide, with power range from 6.5KW to 2000KW.

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

For more details about our diesel generator sets, please contact us anytime.

Your further inquiries are welcome!
